Servo Screws

Home Up Socket Screws Nuts Fixings Enquiry Captive Nuts Washers Nord Lock Washers Nylon Screws Machine Screws Servo Screws Metric Studding Spring Plungers Split & Spring Pins Steel Grub Screws Stainless Grub Screws Countersunk Screws Special Nuts Self Tapping Screws Thread Data Threaded Inserts Cap Head Woodscrews R Clips

You are here - Home > Fixings > Servo Screws



We now stock replacements for lost servo arm screws - please scroll to the bottom of this page for details

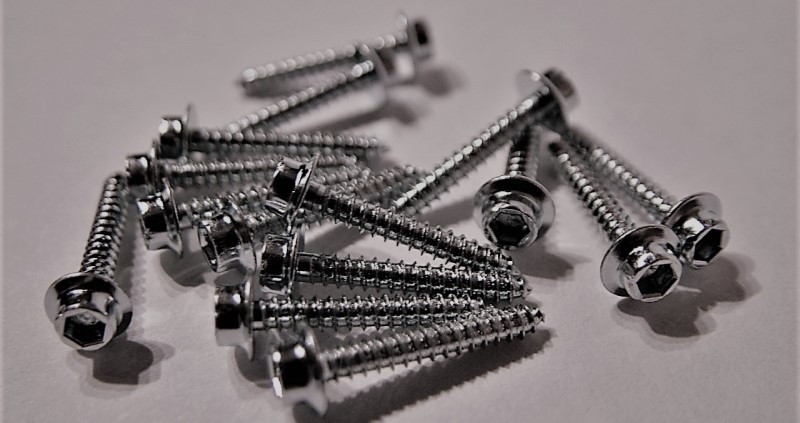

Our SS02 servo screws have the same thread diameter (approx 2.1mm), length (approx 10.5mm), and pitch as the well known Servo manufacturers screws, but have an allen key head. This makes installation into deep fuselages so much easier - the screw is a snug fit onto the end of a 2mm A/F allen key and will usually stay attached as you reach into the fuselage or any other tight space. No more tearing your hair out as you loose the servo screws in the fuselage ! No more annoying dents in the wing where you slipped when installing the aileron servo. We just know you will wish you'd used them for years !

These screws are also ideal for other applications such as securing cowls and canopies etc.

Our SS01 servo screws are a longer version (length approx 14mm).

On all versions, the thread of our servo screw extends right up to the head, so you always have thread biting into the wood even when screwing into very thin walls or blocks.

Heavy Duty servo screws

We also stock heavy duty servo screws in 2 length options. With a diameter over the thread of approx 2.5mm, these screws are specifically designed to the suit heavy duty servos used in large scale models, but as with the standard size, will be suitable for a whole range of applications where a little extra security is required. The flange diameter is also increased to spread the load over a larger area. This larger screw size will also just fit through standard servo brass ferrules, providing a very snug fit, with just little more care needed to align pilot holes exactly with the servo fixings holes.

See below for our new servo screw deals

Boxed Servo Screw Kits

Click on the picture or scroll down to see our new boxed servo screw kits

Tools to suit

We can also supply a good quality long reach(85mm long) allen key for the job if you need one,
at only £0.50 extra (buy 200 screws or more and we send you one for free).

We also offer 2mm A/F drivers for 1/4" drive electric and manual socket screwdrivers, 2mm A/F hex-ball end screw drivers,
and (new) 2mm hex end tee handle drivers. Scroll down for more details.

Servo Screw Rubber Grommets

We can now offer rubber grommets (O rings) to fit under the head of our standard SS01 and SS02 servo screws, which are particularly useful for cowl fixing. These provide a soft contact face between the head of the screw and the cowl to minimise paint damage etc. We do not recommend grommets for securing servos. The grommets are a tight fit on the servo screw and should stay on the screw when you remove it - so the grommets do not get lost if you remove the cowl on the field.

To order, click on the 'Add to Order' button alongside the items of your choice. You can select the quantity on the order form (default is 1). To continue ordering other items, use the 'Continue shopping' button on the order form.

You can review and edit your order, or submit your order at any time by using the button at the bottom of each list.

All prices include 20% VAT  Click here for details


Modelfixings Standard Servo Screws
Steel with Zinc Plated finish
MF Part No Length (mm) Pack Qty Pack Price You can enter/change the number of packs on the order form
SS01 14 20 £1.40

100 £6.40

200 £12.20

SS02 10.5 20 £1.40

100 £6.40

200 £12.20


SS05/20 8 20 £1.20

100 £5.40

200 £10.20

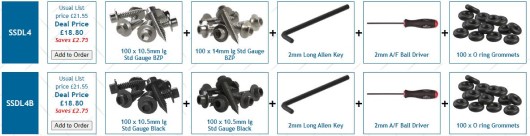

 Servo Screws Deals

SSDL1 100 x 10.5mm and 100 x 14mm standard servo screws plus long allen key to suit £12.20


SSDL2 100 x 10.5mm and 100 x 14mm standard servo screws plus plus long allen key and 2mm ball driver to suit £14.00
saves £1.55


SSDL3 100 x 10.5mm and 100 x 14mm standard servo screws, 100 x 'o' ring grommets and 1 x long allen key to suit £14.25
saves £1.35


SSDL4 100 x 10.5mm and 100 x 14mm standard servo screws, 100 x 'o' ring grommets, 1 x long allen key and 1 x 2mm ball driver to suit £16.45
saves £1.90



Modelfixings Heavy Duty Servo Screws
 Steel with Zinc Plated finish
MF Part No Length (mm) Pack Qty Pack Price You can enter/change the number of packs on the order form
SS03/20 16 20 £1.95

SS03/50 16 50 £4.40

SS04/20 10.5 20 £1.95

SS04/50 10.5 50 £4.40

Servo Screw Grommets
For SS01 & SS02 screws - Rubber O Rings for cowl and canopy fixing
MF Part No Pack Qty Pack Price You can enter/change the number of items on the order form
SSRG/20 20 £0.60

SSRG/100 100 £2.80


Servo Screw Boxed Kit  Ref SSBX01

A selection of our servo screws, rubber O ring grommets and long reach allen keys contained in a quality UK made box with snap close lid. Excellent for flight boxes and workshop.
All for just £23.50

The box lid seals of each compartment so the contents don't become mixed if inverted. Box measures 14.5x9x4cm
Kit includes: 100xSS01, 100xSS02, 50xSS03, 50xSS05, 100xSSRG and 2 keys

Driving Tools for Socket Servo Screws
(fit all sizes of our servo screws)
Tee handle hex drivers, hex-ball end screwdrivers, driver inserts for 1/4" sockets, & 2mm long reach allen keys
MF Part No Description Pack Qty Price You can enter/change the number of items on the order form
SSDT1 1/4" Hex 2mm A/F driver insert 1 £1.20

MF-BD-20 Hex 2mm A/F Screwdriver 1 £2.45


MF-TH-20 2mm A/F hexagon tee handle driver 1 £4.95

SSAK2 2mm A/F long (85mm) reach allen key 1 £0.50

(we send you one of these free with 200 or more servo screws)
We also stock a range of other metric, plus imperial ball drivers, Tee handle drivers, and allen keys. Please Click here to go to the tools page
Servo Arm Screws
Replaces standard size Futaba servo arm screws
Zinc Plated Finish (silver), pozi pan head
MF Part No Description Pack Qty Pack Price You can enter/change the number of items on the order form
SSAS1/10 Servo Arm Screw 10 £1.00

SSAS1/50 Servo Arm Screw 50 £4.25
