Steel Dog Point Grub Screws

Home Up Stainless Steel Dog Point Grub Screws Stainless Steel Cone Point Grub Screws Stainless Steel Cup Point Grub Screws Steel Cup Point Grub Screws Steel Cone Point Grub Screws Steel Dog Point Grub Screws

New Feature!



Please click here for
further information




You are here - Home > Fixings > Stainless & Steel Grub Screws > Steel Dog Point Grub Screws

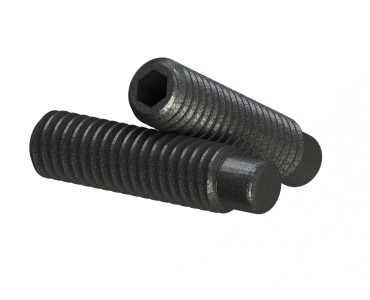

This page lists our current range of  Steel 'Dog' Point Grub Screws
(also known as socket set screws) Grade 45H to BS4168

You can scroll down this page to peruse the range, or use the quick link buttons below to go directly to the thread size you require

Metric Sizes
M3   M4   M5   M6   M8

All sizes have hexagon socket ends for driving with allen keys.
All dimensions are in millimetres including socket A/F sizes (imperial sizes have been converted to metric).
If you need a key, click on the symbol in the tables below and you will be taken to the allen key and ball driver page.

Alternatively, Click Here

If the size you require isn't listed or you require larger quantities (200 plus) please e mail us for a no-obligation quotation.
If you're not sure what thread size you need, or need to send us a sample, click on our 'Thread Data' link at the top of this page'.

All prices include 20% VAT  Click here for details

Metric Thread Pitches
All our metric grub screws are standard pitch (metric coarse) as below unless stated otherwise.
For more guidance on screw thread dimensions please click here
Thread M1.6 M2 M2.5 M3 M4 M5 M6 M8 M10
Pitch (mm) 0.35 0.4 0.45 0.5 0.7 0.8 1.0 1.25 1.5



Metric Grub Screws
Dog Point   Steel Grade 45H to BS4168
Thread O/all
Length (mm)
Socket size Tip Dia (mm) Tip
Length (mm)*
MF REF Pack
Qty
Price

You can enter/change the number of items on the order form


M3

M3 5 1.9 0.9 MF-GSDP0305B 5 0.95

50 7.60


M3 6 1.9 1.75 MF-GSDP0306B 5 0.95

50 7.60


M3 8 1.9 1.75 MF-GSDP0308B 5 0.95

50 7.60


M3 10 1.9 1.75 MF-GSDP0310B 5 0.95

50 7.60

Driving Tools for M3 Socket Grub Screws

1.5mm Hex Key

MF-HK-15 0.50

1.5mm Hex/Ball Driver

MF-BD-15 2.75


M4

M4 6 2.3 1.3 MF-GSDP0406B 5 0.95

50 7.60


M4 8 2.3 2.5 MF-GSDP0408B 5 0.95

50 7.60


M4 10 2.3 2.5 MF-GSDP0410B 5 0.95

50 7.60


M4 12 2.3 2.5 MF-GSDP0412B 5 0.95

50 7.60


M4 16 2.3 2.5 MF-GSDP0416B 5 1.05

50 8.40


Driving Tools for M4 Socket Grub Screws

2.0mm Hex Key MF-HK-20 0.50

2.0mm Hex/Ball Driver MF-BD-20 2.75

2.0mm T Handle Driver MF-TH-20 4.95



M5

M5 8 3.3 3 MF-GSDP0508B 5 0.95

50 7.60


M5 10 3.3 3 MF-GSDP0510B 5 0.95

50 7.60


M5 12 3.3 3 MF-GSDP0510B 5 0.95

50 7.60


M5 16 3.3 3 MF-GSDP0510B 5 1.50

50 12.00


M5 20 3.3 3 MF-GSDP0510B 5 1.50

50 12.00

Driving Tools for M5 Socket Grub Screws

2.5mm Hex Key

MF-HK-25 0.50

2.5mm Hex/Ball Driver

MF-BD-25 2.75

2.5mm T Handle Driver MF-TH-25 4.95


M6

M6 6 3.75 1.6 MF-GSDP0606B 5 1.25

50 10.00


M6 8 3.75 1.6 MF-GSDP0608B 5 1.25

50 10.00


M6 10 3.75 3 MF-GSDP0610B 5 1.25

50 10.00


M6 12 3.75 3 MF-GSDP0612B 5 1.25

50 10.00


M6 16 3.75 3 MF-GSDP0616B 5 1.25

50 10.00


M6 20 3.75 3 MF-GSDP0620B 5 1.25

50 10.00


Driving Tools for M6 Socket Grub Screws

3.0mm Hex Key MF-HK-30 0.50

3.0mm Hex/Ball Driver MF-BD-30 2.95

3.0mm T Handle Driver MF-TH-30 4.95

3mm Swivel wrench MF-BSHW3 7.45



M8

M8 12 5.3 6 MF-GSDP0812B 5 1.25

50 10.00


M8 16 5.3 6 MF-GSDP0816B 5 1.25

50 10.00


M8 20 5.3 6 MF-GSDP0820B 5 1.35

50 10.80

Driving Tools for M8 Socket Grub Screws

4mm Hex Key

MF-HK-40 0.60

4mm Hex/Ball Driver

MF-BD-40 3.45

4mm T Handle Driver MF-TH-40 5.95

4mm Swivel Wrench MF-BSHW4 7.75







If the size you require isn't listed please e mail us for a no-obligation quotation.
