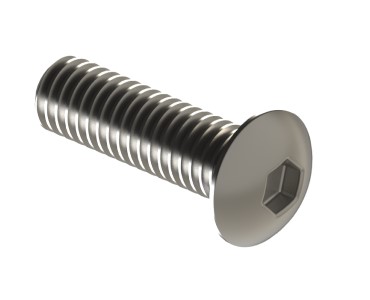

The lists below show our range of UNC Stainless
Steel Button Head socket screws.
To order, click on the 'Add to Order' button alongside the
item of your choice. You can select the quantity on the order form (default is
1). To continue ordering other items, use the 'Continue Shopping' button on the
order form.
Socket sizes
are stated in millimetres (imperial sizes have been converted to metric). If you
need a key, click on the symbol in the tables below and you will be taken to the
allen key and ball driver page.
You can review and edit your order, or submit your order
at any time by using the button at the bottom of each list.
We also stock button head
screws in UNC HT Steel, Metric HT Steel and stainless steel - please use
the buttons above to go to these pages. |
|
Button heads have a smaller socket size and shallower
depth socket than the equivalent sized cap screw and so more care should be
taken not to over-torque, especially on the very small sizes, to avoid
rounding of the socket edges.
It's also crucial to ensure that your hex key of driver is completely
inserted before applying significant torque.
If your application is for a high torque connection or the screws will be
regularly removed and re-used, we would suggest that a socket cap screw is
considered.
UNC Button
Head Dimensions 'D' & 'AF' in mm (see dimension drawing below) |
Thread |
2-56 |
4-40 |
6-32 |
8-32 |
10-24 |
Head Dia 'D'* |
3.9 |
5.2 |
6.4 |
7.8 |
9.0 |
Socket Size 'AF' |
1.27 |
1.6 |
2.0 |
2.4 |
3.2 |
|
*Head
dimensions are nominal and may vary marginally from batch to batch.
|
All prices include 20% VAT
Click
here for details
|
Button
Head Socket Screws
UNC
Threads - A2 Stainless Steel |
|
|
2 UNC |
Please scroll down to the bottom of this 2 UNC
section for for related
ancillaries and tools |
|
Thread |
Overall Length
L |
Socket size |
Pack
Qty |
MF Ref |
Pack
Price |
You can enter/change the number of items on the order form |
Inches |
mm |
A/F |
mm |
|
|
|
|
|
|
|
|
2-56 |
1/4 |
6.35 |
|
5 |
MF-BH101S |
£0.85 |
|
25 |
MF-BH101S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
2-56 |
3/8 |
9.5 |
|
5 |
MF-BH102S |
£0.85 |
|
25 |
MF-BH102S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
2-56 |
1/2 |
12.7 |
|
5 |
MF-BH103S |
£0.85 |
|
25 |
MF-BH103S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
2-56 |
3/4 |
19.05 |
|
5 |
MF-BH105S |
£1.15 |
|
25 |
MF-BH105S/25 |
£4.60 |
|
|
|
|
|
|
|
|
|
Driving Tools for 2 - 56 UNC Socket Button Head Screws |
|
|
|
|
|
|
|
|
1.27mm (0.05")
Hex/Allen Key |
|
MF-HK-13 |
£0.60 |
|
1.27mm
Hex/Ball Driver |
|
MF-BD-13 |
£2.75 |
|
|
|
|
|
|
|
|
|
Popular ancillary items
often ordered with 2 UNC Stainless Steel Button Head
Screws |
|
|
|
|
|
|
|
|
|
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
2UNC
S/Steel
Hex Nuts |
10 |
£0.70 |
|
|
|
*M2
St Steel
Flat Washers |
20 |
£0.80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
2UNC
S/Steel
Nyloc Nuts |
10 |
£0.90 |
|
|
|
*M2 St Steel
Spring Washers |
20 |
£0.40 |
|
|
|
|
|
|
|
|
|
|
|
|
To see our full range of nuts and/or
order
larger quantities, please click
here
|
|
To see our full range of washers and/or
order
larger quantities, please click
here
|
|
|
|
|
|
|
*M2 washers are suitable for use
with 2 UNC screws |
4 UNC |
Please scroll down to the bottom of this 4 UNC
section for for related
ancillaries and tools |
|
Thread |
Overall Length
L |
Socket size |
Pack
Qty |
MF Ref |
Pack
Price |
You can enter/change the number of items on the order form |
Inches |
mm |
A/F |
mm |
|
|
|
|
|
|
|
|
4-40 |
1/4 |
6.35 |
|
5 |
MF-BH110S |
£1.00 |
|
25 |
MF-BH110S/25 |
£4.50 |
|
|
|
|
|
|
|
|
|
4-40 |
3/8 |
9.5 |
|
5 |
MF-BH111S |
£1.00 |
|
25 |
MF-BH111S/25 |
£4.50 |
|
|
|
|
|
|
|
|
|
4-40 |
1/2 |
12.7 |
|
5 |
MF-BH112S |
£1.00 |
|
25 |
MF-BH112S/25 |
£4.50 |
|
|
|
|
|
|
|
|
|
4-40 |
3/4 |
19.05 |
|
5 |
MF-BH114S |
£1.15 |
|
25 |
MF-BH114S/25 |
£4.60 |
|
|
|
|
|
|
|
|
|
4-40 |
1 |
25.4 |
|
5 |
MF-BH115S |
£1.15 |
|
25 |
MF-BH115S/25 |
£4.60 |
|
|
|
|
|
|
|
|
|
Driving Tools for 4 - 40 UNC Socket Button Head Screws |
|
|
|
|
|
|
|
|
1.6mm (1/16")
Hex/Allen Key |
|
MF-HK-16 |
£0.60 |
|
1/16"
Hex/Ball Driver |
|
MF-BD-62 |
£2.75 |
|
|
|
|
|
|
|
|
|
Popular ancillary items
often ordered with 4 UNC Stainless Button Head Screws |
|
|
|
|
|
|
|
|
|
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
4
UNC Stainless
Steel
Hex Nuts |
10 |
£0.70 |
|
|
|
M3* St. Steel
Flat Washers |
20 |
£0.70 |
|
|
|
|
|
|
|
|
|
|
|
|
|
4 UNC
Stainless Steel
Nyloc Nuts |
10 |
£0.90 |
|
|
|
M3* St. Steel
Spring Washers |
20 |
£0.50 |
|
|
|
|
|
|
|
|
|
|
|
|
To see our full range of nuts and/or
order
larger quantities, please click
here
|
|
To see our full range of washers and/or
order
larger quantities, please click
here
|
|
|
|
|
|
|
*M3 washers are suitable for use
with 4 UNC screws |
6 UNC |
Please scroll down to the bottom of this 6 UNC
section for for related
ancillaries and tools |
|
Thread |
Overall Length
L |
Socket size |
Pack
Qty |
MF Ref |
Pack
Price |
You can enter/change the number of items on the order form |
Inches |
mm |
A/F |
mm |
|
|
|
|
|
|
|
|
6-32 |
3/16 |
4.75 |
|
5 |
MF-BH119S |
£0.85 |
|
25 |
MF-BH119S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
6-32 |
1/4 |
6.35 |
|
5 |
MF-BH120S |
£0.85 |
|
25 |
MF-BH120S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
6-32 |
3/8 |
9.5 |
|
5 |
MF-BH121S |
£0.85 |
|
25 |
MF-BH121S/25 |
£3.60 |
|
|
|
|
6-32 |
1/2 |
12.7 |
|
5 |
MF-BH122S |
£0.85 |
|
25 |
MF-BH122S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
6-32 |
5/8 |
15.9 |
|
5 |
MF-BH123S |
£0.85 |
|
25 |
MF-BH123S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
6-32 |
3/4 |
19 |
|
5 |
MF-BH124S |
£0.85 |
|
25 |
MF-BH124S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
6-32 |
1 |
25.4 |
|
5 |
MF-BH125S |
£0.85 |
|
25 |
MF-BH125S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
Driving Tools for 6 - 32 UNC Socket Button Head Screws |
|
|
|
|
|
|
|
|
2.0mm Hex/Allen Key |
|
MF-HK-20 |
£0.50 |
|
2.0mm
Hex/Ball Driver |
|
MF-BD-20 |
£2.75 |
|
|
|
|
|
|
|
|
|
Popular ancillary items
often ordered with 6 UNC Stainless Steel Button Head Screws |
|
|
|
|
|
|
|
|
|
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
|
Description |
Pack
Qty |
Pack
Price |
|
|
6UNC
Stainless
Steel
Hex Nuts |
10 |
£0.70 |
|
|
|
*M3.5
St/Steel
Flat Washers |
20 |
£0.80 |
|
|
|
|
|
|
|
|
|
|
|
|
|
6UNC
Stainless
Steel
Nyloc Nuts |
10 |
£0.90 |
|
|
|
*M3.5 St/Steel
Spring Washers |
20 |
£0.50 |
|
|
|
|
|
|
|
|
|
|
|
|
To see our full range of nuts and/or
order
larger quantities, please click
here
|
|
To see our full range of washers and/or
order
larger quantities, please click
here
|
|
|
|
|
|
|
*M3.5 washers are suitable for
use with 6 UNC screws |
8 UNC |
Please scroll down to the bottom of this 8 UNC
section for for related
ancillaries and tools |
|
Thread |
Overall Length
L |
Socket size |
Pack
Qty |
MF Ref |
Pack
Price |
You can enter/change the number of items on the order form |
Inches |
mm |
A/F |
mm |
|
|
|
|
|
|
|
|
8-32 |
3/8 |
9.5 |
|
5 |
MF-BH131S |
£0.85 |
|
25 |
MF-BH131S/25 |
£3.60 |
|
|
|
|
8-32 |
1/2 |
12.7 |
|
5 |
MF-BH132S |
£0.85 |
|
25 |
MF-BH132S/25 |
£3.60 |
|
|
|
|
8-32 |
5/8 |
15.9 |
|
5 |
MF-BH133S |
£0.85 |
|
25 |
MF-BH133S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
8-32 |
3/4 |
19.05 |
|
5 |
MF-BH135S |
£0.85 |
|
25 |
MF-BH135S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
Driving Tools for 8 - 32 UNC Socket Button Head Screws |
|
|
|
|
|
|
|
|
2.4mm (3/32)
Hex/Allen Key |
|
MF-HK-24 |
£0.60 |
|
2.4mm
(3/32")
Hex/Ball Driver |
|
MF-BD-66 |
£3.25 |
|
2.4mm (3/32")
T Handle Driver |
|
MF-TH-332 |
£4.95 |
|
|
|
|
|
|
|
|
|
Popular ancillary items
often ordered with 8 UNC Button Head
Screws |
|
|
|
|
|
|
|
|
|
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
8
UNC Stainless
Steel
Hex Nuts |
10 |
£0.80 |
|
|
|
M4*
Stainless Steel
Flat Washers |
20 |
£0.70 |
|
|
|
|
|
|
|
|
|
|
|
|
|
8 UNC
Stainless Steel
Nyloc Nuts |
10 |
£0.90 |
|
|
|
M4*
Stanless Steel
Spring Washers |
20 |
£0.50 |
|
|
|
|
|
|
|
|
|
|
|
|
To see our full range of nuts and/or
order
larger quantities, please click
here
|
|
To see our full range of washers and/or
order
larger quantities, please click
here
|
|
|
|
|
|
|
*M4 washers are suitable for use
with 8 UNC screws |
10 UNC |
Please scroll down to the bottom of this 10 UNC
section for for related
ancillaries and tools |
|
Thread |
Overall Length
L |
Socket size |
Pack
Qty |
MF Ref |
Pack
Price |
You can enter/change the number of items on the order form |
Inches |
mm |
A/F |
mm |
|
|
|
|
|
|
|
|
10-24 |
3/8 |
9.5 |
|
5 |
MF-BH141S |
£0.85 |
|
25 |
MF-BH141S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
10-24 |
1/2 |
12.7 |
|
5 |
MF-BH142S |
£0.85 |
|
25 |
MF-BH142S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
10-24 |
3/4 |
19.05 |
|
5 |
MF-BH144S |
£0.85 |
|
25 |
MF-BH144S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
10-24 |
1 |
25.4 |
|
5 |
MF-BH145S |
£0.85 |
|
25 |
MF-BH145S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
Driving Tools for 10 - 24 UNC Socket Button Head Screws |
|
|
|
|
|
|
|
|
3.2mm (1/8")
Hex/Allen Key |
|
MF-HK-32 |
£0.60 |
|
3.2mm
(1/8")
Hex/Ball Driver |
|
MF-BD-69 |
£3.45 |
|
|
|
|
|
|
|
|
|
Popular ancillary items
often ordered with 10 UNC Stainless Steel Button Head
Screws |
|
|
|
|
|
|
|
|
|
|
|
|
Description |
Pack
Qty |
Pack Price |
|
|
|
Description |
Pack
Qty |
Pack
Price |
|
|
10UNC
Stainless
Steel
Hex Nuts |
10 |
£0.80 |
|
|
|
*M5
St/Steel
Flat Washers |
20 |
£0.70 |
|
|
|
|
|
|
|
|
|
|
|
|
|
10UNC
Stainless
Steel
Nyloc Nuts |
10 |
£1.00 |
|
|
|
*M5 St/Steel
Spring Washers |
20 |
£0.60 |
|
|
|
|
|
|
|
|
|
|
|
|
To see our full range of nuts and/or
order
larger quantities, please click
here
|
|
To see our full range of washers and/or
order
larger quantities, please click
here
|
|
|
|
|
|
|
*M5 washers are suitable for use
with 10 UNC screws |
1/4" UNC |
Please scroll down to the bottom of this
1/4 UNC
section for for related
ancillaries and tools |
|
Thread |
Overall Length
L |
Socket size |
Pack
Qty |
MF Ref |
Pack
Price |
You can enter/change the number of items on the order form |
Inches |
mm |
A/F |
mm |
|
|
|
|
|
|
|
|
1/4 - 20 |
3/8 |
9.5 |
|
5 |
MF-BH147S |
£0.85 |
|
25 |
MF-BH147S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
|
Sorry - this item is temporarily out of stock |
|
1/4 - 20 |
1/2 |
12.7 |
|
5 |
MF-BH148S |
£0.85 |
|
25 |
MF-BH148S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
1/4 - 20 |
3/4 |
19.05 |
|
5 |
MF-BH149S |
£0.85 |
|
25 |
MF-BH149S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
1/4 - 20 |
1 |
25.4 |
|
5 |
MF-BH150S |
£0.85 |
|
25 |
MF-BH150S/25 |
£3.60 |
|
|
|
|
|
|
|
|
|
Driving Tools for 8 - 32 UNC Socket Button Head Screws |
|
|
|
|
|
|
|
|
4.0mm Hex/Allen Key |
|
MF-HK-40 |
£0.60 |
|
4.0mm
Hex/Ball Driver |
|
MF-BD-40 |
£3.45 |
|
4.0mm T Handle Driver |
|
MF-TH-40 |
£5.95 |
|
4mm
Swivel Wrench |
|
MF-BSHW4 |
£8.25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
* Metric dimensions have been converted
from inch dimensions
