You are here - Home > Fixings > Socket Screws > Miniature Cap Screws



The page lists our range of Steel M1.6, M2, M2.5 and M2.6 Socket Cap screws.
For M3 sizes and above, please use the links below

Miniature stainless cap screws are now listed on the main stainless cap screw page.
To order, click on the button alongside the item of your choice. You can select the quantity on the order form (default is 1).
To continue ordering other items, use the 'Continue Shopping' button on the order form.
Socket sizes are stated in millimetres (imperial sizes have been converted to metric).
If you need a key, click on the symbol in the tables below and you will be taken to the allen key and ball driver page.
Tools and ancillary items for each size are also listed at the bottom of each size section.
All dimensions are in millimetres.
Please note that the overall shank length is the measurement from the underside of the head to the end of the screw shank.

All our metric screws are metric coarse with thread pitches as below unless stated otherwise.
For more guidance on screw thread dimensions please click here
Thread M1.6 M2 M2.5 M2.6 M3 M3.5 M4 M5 M6
Pitch (mm) 0.35 0.4 0.45 0.45 0.5 0.6 0.7 0.8 1.0


Please scroll down this page to the thread size you require, or click on the links below
M1.6   M2   M2.5   M2.6   M3   M3.5   M4   M5   M6
Using the links above will take you to cap screws on this page   Using the links above will take you to our HT metric cap screw page for M3-M6



Boxed Kits
Please click on the image to see our range of boxed kits of our most popular M2, and M2.5 sizes, plus M3, M4, M5 and M6 cap screws in  HT Steel (black) and Stainless Steel.



All prices include 20% VAT  Click here for details

  i

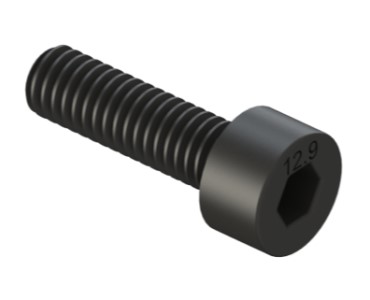

Socket Cap Screws
Miniature range
Metric Threads - High Tensile Steel grade 12.9.
Black finish  ISO 4762 / Din 912


M1.6 Please scroll down to the bottom of this M1.6 section for related ancillaries and tools
All M1.6 are fully threaded
Thread

Length
(mm)

 Socket
Size
(A/F)		 Pack
Qty

MF Ref

 Price   You can enter/change the number of items on the order form

M1.6 3 5 MF-SC70 £0.90

25 MF-SC70/25 £4.05


M1.6 4 5 MF-SC76 £0.90

25 MF-SC76/25 £4.05


  Sorry - this item is temporarily out of stock
M1.6 5 5 MF-SC71 £0.90

25 MF-SC71/25 £4.05


M1.6 6 5 MF-SC72 £0.90

25 MF-SC72/25 £4.05


M1.6 8 5 MF-SC73 £1.00

25 MF-SC73/25 £4.50


M1.6 10 5 MF-SC74 £1.20

25 MF-SC74/25 £5.40


M1.6 12 5 MF-SC75 £1.20

25 MF-SC75/25 £5.40

Driving Tools for M1.6 Socket Cap Screws

1.5mm Hex/Allen Key

 MF-HK-15 £0.50

1.5mm Hex/Ball Driver

 MF-BD-15 £2.75

Popular ancillary items often ordered with M1.6 Steel Socket Cap Screws
  Description Pack
Qty		 Pack Price



     Description Pack
Qty		 Pack Price

M1.6 St/ Steel Hex Nuts 10 £1.50



M1.6 St/Steel
Flat Washers		 20 £0.80


To see our full range of nuts and/or order
larger quantities, please click here 		  To see our full range of washers and/or order
larger quantities, please click here



M2 Please scroll down to the bottom of this M2 section for related ancillaries and tools
All M2 up to L=25mm are fully threaded
Thread

Length
(mm)

 Socket
Size
(A/F)		 Pack
Qty

MF Ref

 Price   You can enter/change the number of items on the order form

M2 3 5 MF-SC61 £0.90

25 MF-SC61/25 £3.60


M2 4 5 MF-SC40 £0.90

25 MF-SC40/25 £3.60


M2 5 5 MF-SC49 £0.90

25 MF-SC49/25 £3.60


M2 6 5 MF-SC41 £0.90

25 MF-SC41/25 £3.60


M2 8 5 MF-SC42 £0.90

25 MF-SC42/25 £3.60


M2 10 5 MF-SC43 £0.90

25 MF-SC43/25 £3.60


M2 12 5 MF-SC44 £1.00

25 MF-SC44/25 £4.00


M2 14 5 MF-SC45 £1.00

25 MF-SC45/25 £4.00


M2 16 5 MF-SC46 £1.20

25 MF-SC46/25 £4.80


M2 20 5 MF-SC47 £1.30

25 MF-SC47/25 £5.20


M2 25 5 MF-SC48 £4.25
£3.45

25 MF-SC48/25 £19.50
£15.50


M2 30*
 		 5 MF-SC39 £4.95
£3.70

TL=16mm 25 MF-SC39/25 £22.20
£16.65

Very rare size!

* Please note that only the end 16mm of the shank is threaded on 30mm long M2 cap screws
Driving Tools for M2 Socket Cap Screws

1.5mm Hex/Allen Key

 MF-HK-15 £0.50

1.5mm Hex/Ball Driver

 MF-BD-15 £2.75

Popular ancillary items often ordered with M2 Steel Socket Cap Screws
  Description Pack
Qty		 Pack Price



     Description Pack
Qty		 Pack Price

M2 Steel BZP
Hex Nuts		 10 £0.80



M2 St/Steel
Flat Washers		 20 £0.70

M2 Steel BZP
Nyloc Nuts		 10 £2.80
£2.40

  M2 St/Steel
Spring Washers		 20 £0.40


To see our full range of nuts and/or order
larger quantities, please click here 		  To see our full range of washers and/or order
larger quantities, please click here

M2.5 Please scroll down to the bottom of this M1.6 section for related ancillaries and tools
All M2.5 are fully threaded
Thread

Length
(mm)

 Socket
Size
(A/F)		 Pack
Qty

MF Ref

 Price   You can enter/change the number of items on the order form

M2.5 4 5 MF-SC50 £1.00

25 MF-SC50/25 £4.00


M2.5 5 5 MF-SC55 £1.00

25 MF-SC55/25 £4.00


M2.5 6 5 MF-SC51 £1.00

25 MF-SC51/25 £4.00


M2.5 8 5 MF-SC52 £1.00

25 MF-SC52/25 £4.00


M2.5 10 5 MF-SC53 £1.00

25 MF-SC53/25 £4.00


M2.5 12 5 MF-SC54 £1.20

25 MF-SC54/25 £4.80


M2.5 14 5 MF-SC59 £1.20

25 MF-SC59/25 £4.80


M2.5 16 5 MF-SC56 £1.20

25 MF-SC56/25 £4.80


M2.5 18 5 MF-SC69 £1.40

25 MF-SC69/25 £5.60


M2.5 20 5 MF-SC57 £1.40

25 MF-SC57/25 £5.60


M2.5 25 5 MF-SC58 £1.95

25 MF-SC58/25 £8.75

Driving Tools for M2.5 Socket Cap Screws

2mm Hex/Allen Key

 MF-HK-20 £0.50

2mm Hex/Ball Driver

 MF-BD-20 £2.75

2mm T Handle Driver

 MF-TH-20 £4.95

Popular ancillary items often ordered with M2.5 Steel Socket Cap Screws
  Description Pack
Qty		 Pack Price



     Description Pack
Qty		 Pack Price

M2.5 Steel BZP
Hex Nuts		 10 £0.60



M2.5 Steel BZP
Flat Washers		 20 £0.60

M2.5 Steel BZP
Nyloc Nuts		 10 £1.20

  M2.5 Steel BZP
Spring Washers		 20 £0.50


To see our full range of nuts and/or order
larger quantities, please click here 		  To see our full range of washers and/or order
larger quantities, please click here




M2.6 Rare JIS spec thread (pitch 0.45mm)
Please scroll down to the bottom of this M2.6 section for related ancillaries and tools
All M2.6 are fully threaded
Thread

Length
(mm)

 Socket
Size
(A/F)		 Pack
Qty

MF Ref

 Pack
Price 		You can enter/change the number of items on the order form

M2.6 6 5 MF-SC85 £3.50

M2.6 8 5 MF-SC60 £3.50

M2.6 10 5 MF-SC86 £3.50

M2.6 12 5 MF-SC62 £3.75

M2.6 16 5 MF-SC63 £3.75

Driving Tools for M2.6 Socket Cap Screws

2mm Hex/Allen Key

 MF-HK-20 £0.50

2mm Hex/Ball Driver

 MF-BD-20 £2.75

2mm T Handle Driver

 MF-TH-20 £4.95





If the size you require isn't listed please e mail us for a no-obligation quotation.
