You are here - Home > Fixings > Socket Screws > Metric Stainless Steel Countersunk Screws


This page lists our range of Countersunk Socket Screws stocked in stainless steel grade A2 for corrosion protection.

Sizes M3, M4, M5 and M6 (plus some M2 sizes) have hexagon socket ends for driving with allen keys.
Some M1.6, M2 and M2.5 variants are also listed with slotted heads.

Socket sizes are stated in millimetres (imperial sizes have been converted to metric). If you need a key, click
on the symbol in the tables below and you will be taken to the allen key and ball driver page.

Alternatively,

Please click here

To order, click on the 'Add to Order' button alongside the item of your choice. You can select the quantity on the order form (default is 1).
To continue ordering other items, use the 'Continue Shopping' button on the order form.

You can review and edit your order, or submit your order at any time by using the button at the bottom of each list.

All dimensions are in millimetres

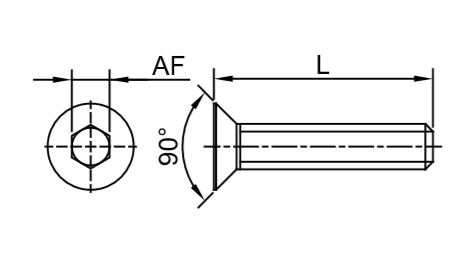

Note that the length of countersunk screws is the length including the screw head and unless stated otherwise, the shanks are fully threaded.

Many more sizes are available - if the size you require isn't listed please e mail us for a no-obligation quotation.

If you were looking for brass slotted countersunk screws, we have a small range listed in our Machine Screws section



Metric Thread Pitches
All our metric screws are standard pitch (metric coarse) as below unless stated otherwise.
For more guidance on screw thread dimensions please click here
Thread M1.6 M2 M2.5 M2.6 M3 M3.5 M4 M5 M6
Pitch (mm) 0.35 0.4 0.45 0.45 0.5 0.6 0.7 0.8 1.0


Please scroll down this page to the thread size you require, or click on the links below
M1.6   M2   M2.5   M3   M4   M5   M6


The links below take you to our other countersunk socket screws listed on other pages
  Metric
Steel		   Metric
Nylon		   UNC
Steel		   UNC
Stainless		   UNF
Steel

All prices include 20% VAT  Click here for details

Countersunk Socket Screws

Metric A2-70 Stainless Steel
Head Drive
Type		 Thread

Length
L
(mm)

 Socket
Size
(AF)		 Pack
Qty

MF Ref

 Price

You can enter/change the number of items on the order form

M1.6

Slot M1.6 4 n/a 10 MF-CS1604S £1.20

100 MF-CS1604S/100 £10.80


Slot M1.6 6 n/a 10 MF-CS1606S £1.20

100 MF-CS1606S/100 £10.80


Slot M1.6 8 n/a 10 MF-CS1608S £1.20

100 MF-CS1608S/100 £10.80


Slot M1.6 10 n/a 10 MF-CS1610S £1.20

100 MF-CS1610S/100 £10.80


M2

Slot M2 4 n/a 10 MF-CS04S £1.00

100 MF-CS04S/100 £9.00


Socket M2 4 10 MF-CS04AS £1.30

100 MF-CS04AS/100 £11.70


Socket M2 5 10 MF-CS05AS £1.30

100 MF-CS05AS/100 £11.70


Slot M2 6 n/a 10 MF-CS06S £1.00

100 MF-CS06S/100 £9.00


Sorry - this item is temporarily out of stock
Socket M2 6 10 MF-CS06AS £1.30

100 MF-CS06AS/100 £11.70


Slot M2 8 n/a 10 MF-CS08S £1.00

100 MF-CS08S/100 £9.00


Socket M2 8 10 MF-CS08AS £1.40

100 MF-CS08AS/100 £12.60


Slot M2 10 n/a  10 MF-CS10S £1.10

100 MF-CS10S/100 £9.90


Socket M2 10 10 MF-CS10AS £1.50

100 MF-CS10AS/100 £13.50


Slot M2 12 n/a  10 MF-CS09S £1.30

100 MF-CS09S/100 £11.70


Socket M2 12 10 MF-CS09AS £1.50

100 MF-CS09AS/100 £13.50


Socket M2 16 10 MF-CS01AS £1.80

100 MF-CS01AS/100 £16.20


Socket M2 20 10 MF-CS02AS £1.80

100 MF-CS02AS/100 £16.20


Driving Tools for M2 Socket Countersunk Screws

1.27mm (0.05") Hex/Allen Key MF-HK-13 £0.60

1.27mm Hex/Ball Driver MF-BD-13 £2.75


M2.5

Slot M2.5 4 n/a  10 MF-CS41S £1.20

100 MF-CS41S/100 £10.80


Socket M2.5 4 10 MF-CS41AS £1.40

100 MF-CS41AS/100 £12.60


Socket M2.5 5 10 MF-CS46AS £1.40

100 MF-CS46AS/100 £12.60


Socket M2.5 6 10 MF-CS42AS £1.40

100 MF-CS42AS/100 £12.60


Socket M2.5 8 10 MF-CS43AS £1.50

100 MF-CS43AS/100 £13.50


Socket M2.5 10 10 MF-CS44AS £1.50

100 MF-CS44AS/100 £13.50


Slot M2.5 10 n/a  10 MF-CS44S £1.40

100 MF-CS44S/100 £12.60


Socket M2.5 12 10 MF-CS45AS £1.50

100 MF-CS45AS/100 £13.50


Slot M2.5 12 n/a  10 MF-CS45S £1.40

100 MF-CS45S/100 £12.60


Socket M2.5 16 10 MF-CS47AS £1.50

100 MF-CS47AS/100 £13.50


Slot M2.5 20 n/a  10 MF-CS48S £1.40

100 MF-CS48S/100 £12.60


Socket M2.5 20 10 MF-CS48AS £1.50

100 MF-CS48AS/100 £13.50

Driving Tools for M2.5 Socket Countersunk Screws
1.5mm Hex/Allen Key MF-HK-15 £0.50

1.5mm Hex/Ball Driver MF-BD-15 £2.75


M3

Socket M3 4 10 MF-CS11S £1.10

100 MF-CS11S/100 £8.25


Socket M3 6 10 MF-CS12S £1.10

100 MF-CS12S/100 £8.25


Socket M3 8 10 MF-CS14S £1.10

100 MF-CS14S/100 £8.25


Socket M3 10 10 MF-CS16S £1.20

100 MF-CS16S/100 £9.00


Socket M3 12 10 MF-CS18S £1.20

100 MF-CS18S/100 £9.00


Socket M3 14 10 MF-CS17S £1.20

100 MF-CS17S/100 £9.00


Socket M3 16 10 MF-CS19S £1.20

100 MF-CS19S/100 £9.00


Socket M3 18 10 MF-CS25S £1.40

100 MF-CS25S/100 £10.50


Socket M3 20 10 MF-CS20S £1.40

100 MF-CS20S/100 £10.50


Socket M3 25 10 MF-CS21S £1.50

100 MF-CS21S/100 £12.00


Socket M3 30 10 MF-CS22S £1.60

50 MF-CS22S/50 £6.40


Socket
Partially
Threaded		 M3 30
(18mm of thread)		 10 MF-CS22PS £1.00

50 MF-CS22PS/50 £4.00


Socket M3 40 10 MF-CS24S £1.60

50 MF-CS24S/50 £6.40


Socket M3 50 10 MF-CS26S £1.60

50 MF-CS26S/50 £6.40


Driving Tools for M3 Socket Countersunk Screws

2.0mm Hex/Allen Key MF-HK-20 £0.50

2.0mm Hex/Ball Driver MF-BD-20 £2.75


M4

Socket M4 6 10 MF-CS30S £1.10

100 MF-CS30S/100 £8.25


Socket M4 8 10 MF-CS32S £1.10

100 MF-CS32S/100 £8.25


Socket M4 10 10 MF-CS34S £1.25

100 MF-CS34S/100 £9.35


Socket M4 12 10 MF-CS36S £1.25

100 MF-CS36S/100 £9.35


Socket M4 16 10 MF-CS37S £1.25

100 MF-CS37S/100 £9.35


Socket M4 20 10 MF-CS38S £1.40

100 MF-CS38S/100 £10.50


Socket M4 25 10 MF-CS39S £1.50

100 MF-CS39S/100 £11.25


Socket M4 30 10 MF-CS31S £1.50

100 MF-CS31S/100 £11.25




Sorry - this item is currently unavailable


Socket M4 40
(Thread length
12mm)		 5 MF-CS40SP £1.00

50 MF-CS40SP/50 £7.50


Socket M4 40 5 MF-CS40S £1.10

50 MF-CS40S/50 £8.25


Socket M4 50 5 MF-CS49S £1.10

50 MF-CS49S/50 £8.25

Driving Tools for M4 Socket Countersunk Screws
2.5mm Hex/Allen Key MF-HK-25 £0.50

2.5mm Hex/Ball Driver MF-BD-25 £2.75

2.5mm T Handle Driver MF-TH-25 £4.95


M5

Socket M5 10 10 MF-CS50S £1.20

Socket M5 12 10 MF-CS52S £1.20

Socket M5 16 10 MF-CS56S £1.40

Socket M5 20 10 MF-CS58S £1.40

Socket M5 25 10 MF-CS59S £1.40

Socket M5 30 10 MF-CS60S £1.40

Socket M5 40 5 MF-CS62S £1.00

Socket M5 50 5 MF-CS63S £1.00


Driving Tools for M3 Socket Countersunk Screws

3.0mm Hex/Allen Key MF-HK-30 £0.50

3.0mm Hex/Ball Driver MF-BD-30 £2.95

3mm T Handle Driver MF-TH-30 £4.95

3mm Swivel wrench MF-BSHW3 £8.25


M6

Socket M6 16 5 MF-CS73S £0.80

Socket M6 20 5 MF-CS70S £0.80

Socket M6 25 5 MF-CS71S £0.80

Socket M6 30 5 MF-CS72S £0.85

Socket M6 40 5 MF-CS74S £0.90

Socket M6 50 5 MF-CS77S £0.90

Driving Tools for M4 Socket Countersunk Screws
4.0mm Hex/Allen Key MF-HK-40 £0.60

4.0mm Hex/Ball Driver MF-BD-40 £3.45

4.0mm T Handle Driver MF-TH-40 £5.95

4.0mm Swivel Wrench MF-BSHW4 £8.25





Many more sizes are available - if the size you require isn't listed please e mail us for a no-obligation quotation.
